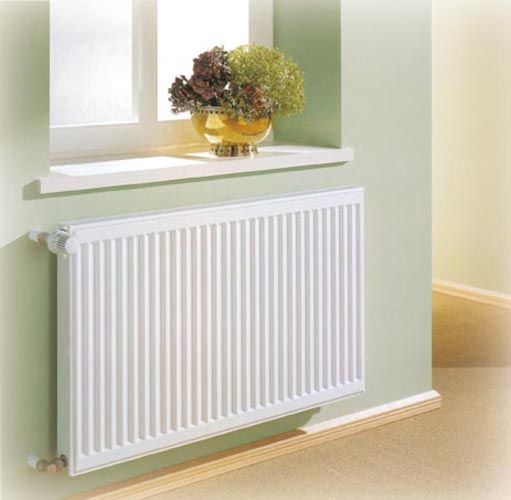

Steel plate radiator is a kind of heating radiator, which is mainly divided into four types: single-plate single convection, double-plate single convection, double-plate double-convection, and three-plate three-convection. The small size can achieve the best heat dissipation effect, no need to add a heating hood, which reduces the occupation of indoor space to the greatest extent.
The steel plate radiator is divided into two types according to the model: standard type and composite type. The standard type means that the water inlet and return water are on the side of the radiator, which is a side-in and side-out type; the composite type means that the water inlet and return water are dissipating heat. Under the device, the inlet and return water can be on the lower left side or the lower right side. According to the structure, it can be divided into 5 types: 10 type, 11 type, 20 type, 21 type and 22 type. The height of the conventional steel plate radiator is 300mm, 400mm, 500mm, 600mm, 900mm, and the length is between 300 and 2000mm.
2 Advantages and disadvantages of steel plate radiator
With such a huge user group, steel plate radiators must have their attractive advantages. Let's take a look at it together:
(1) The heat dissipation is efficient and the temperature rises rapidly. The steel plate radiator uses 20% radiation + 80% convection to dissipate heat, and the room temperature can rise within 15-30 minutes.
(2) Low temperature heating is beneficial to energy saving. The steel plate radiator has a small water capacity, which can effectively reduce the water supply temperature of the heating system and reduce energy consumption under the same volume.
(3) The volume is exquisite and decorative. The thickness is half of the traditional radiator, occupying a small space, and it will not have any impact on the home layout; and its appearance is beautiful and generous, and it can also add a touch of freshness to the indoor environment.
(4) Individual adjustment, heating and comfort. It can be heated at low temperature and has good heating comfort.
(5) Various specifications and easy installation. Complete specifications and models to meet different needs. The radiator comes with brackets and fasteners for easy installation; you can also choose a floor stand to install the radiator on the floor.
(6) It is praised as "100% matching with the wall-hung boiler", and the combination of the two is especially suitable. Low temperature and high efficiency heating, environmental protection and comfort, long life, very suitable for ordinary family use.
Although the steel plate radiator has many advantages, it is inevitable that there will be some disadvantages. The anti-corrosion performance of the steel plate radiator is relatively poor, and it cannot be used in a more complex heating system. For example, poor water quality will affect its service life. |
